Product Description
Product name: film capacitor, DC link capacitor, diy spot welder capacitor
l Aluminum round housing package, sealed with epoxy resin;
l Copper nuts/screw leads, insulated plastic cover positioning, easy installation;
l Large capacity, small size;
l Resistance to high voltage, with self-healing;
l High ripple current, high dv/dt withstand capability.
Technical Parameters
Film capacitor, DC link capacitor, diy spot welder capacitor technical datas as following:
Operating temperature range | -40 ~ +85℃ |
Capacitance range | 10~100μF |
Rated voltage | 350V.DC ~ 2000V.DC |
Capacitance tolerance | ±5%(J); ±10%(K) |
Life expectancy | 100,000hour (Un; hotspot≤70℃) |
Withstand voltage | 1.5Un/60S |
Dissipation factor | tgδ ≤ 0.0015 f=1Hz |
Insulation resistance | Rs X C ≥ 5000S (at 20℃ 100V.DC) |
Reference standard | IEC61071; IEC61881 |

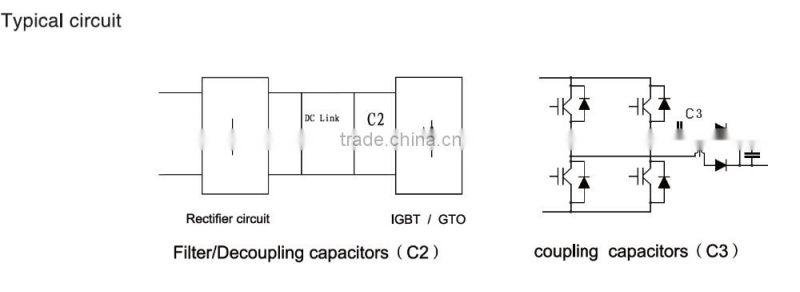

Typical circuit of film capacitor, DC link capacitor, diy spot welder capacitor

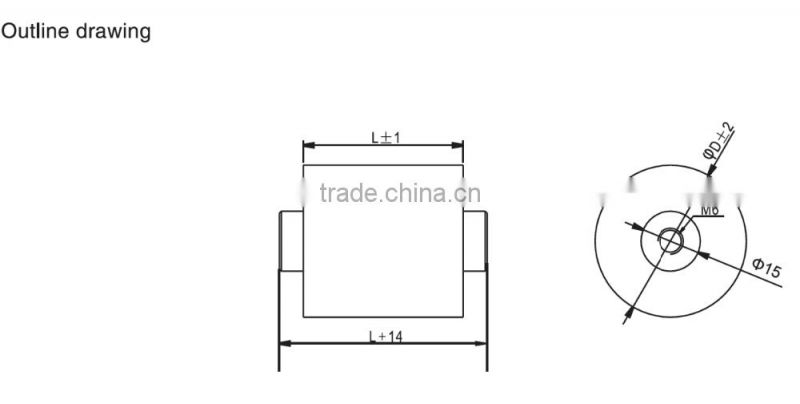

Outline drawing of film capacitor, DC link capacitor, diy spot welder capacitor
Other product images of film capacitor, DC link capacitor, diy spot welder capacitor
Application
Film capacitor, DC link capacitor, diy spot welder capacitor is widely used in DC-Link circuit for filtering energy storage. Besides, it can be applied for other areas:
l Can replace electrolytic capacitors, better performance and longer life;
l Wind power, photovoltaic power inverter, SVG;
l Welding equipment, power suppliers, induction heating equipment, for DC-Link filter;
l New energy automobile.
Factory introduction
Wuxi Chenrui New Energy Technology Co., Ltd also calls CRE, the company is committed to serve the energy saving, environmental protection, electronic vehicles and other new energy areas, especially our film capacitor, DC link capacitor, diy spot welder capacitor is hot sales recently.

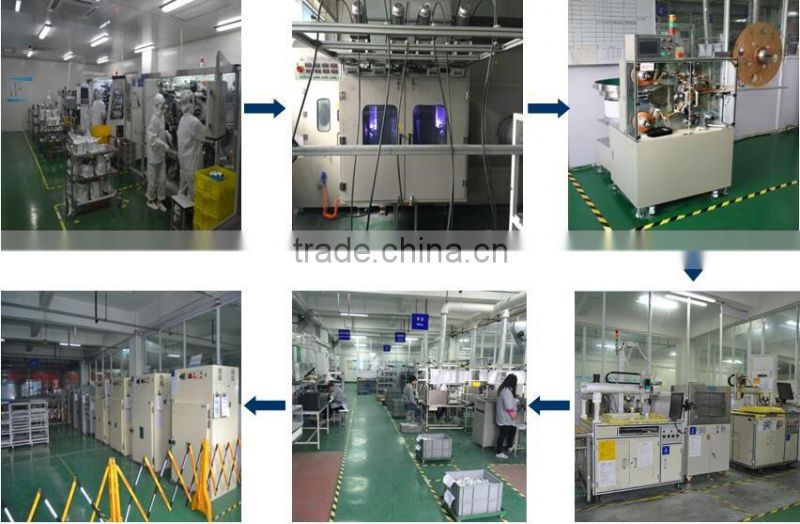

Production line
Winding-8 Guns Sprayer-Cleaning-Semi-Auto Test-Welding-Auto Potting-Burn-in-Auto test for final product, which is our standard procedures for film capacitor, DC link capacitor, diy spot welder capacitor.
