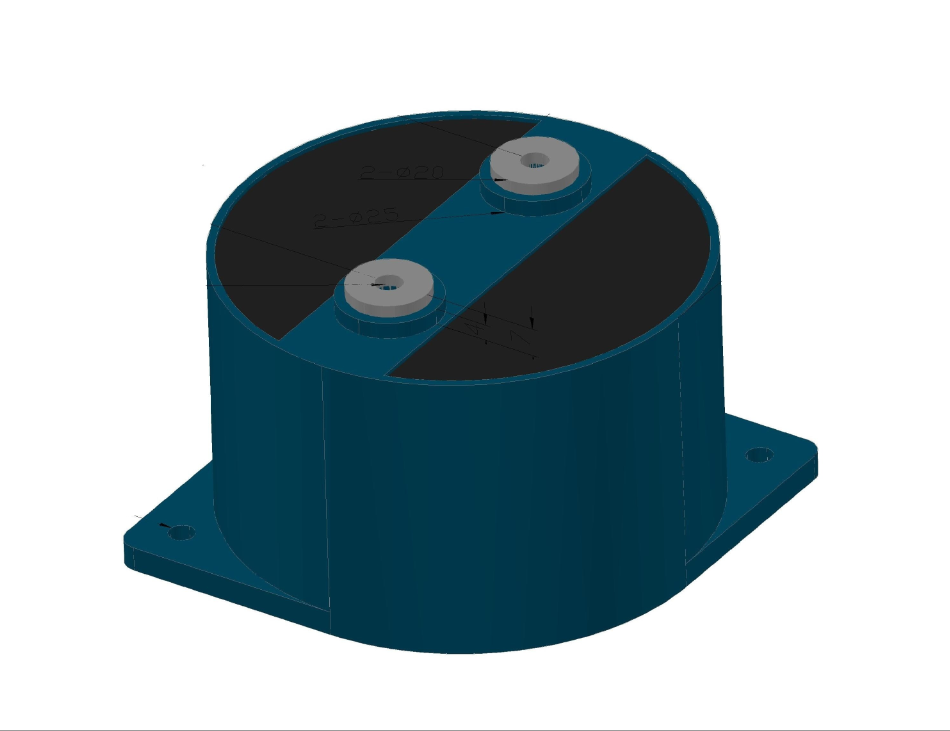

EV&HEV high frequency DC wireless fast charging container
Features
● Low ESR and ESL;
● Superior dv/dt makes the product over-voltage and over-current faster;
● The temperature rise of the core inside the product is greatly reduced by the distributed current technology,
Ambient temperature 85°C temperature rise ≤8°C;
Ambient temperature 105°C temperature rise≤6°C;
● High temperature withstand voltage T/T: 1.5*Undc (105℃, 60S), product leakage current≤10mA;
T/C: 3000VAC/60S, no flicker or meson breakdown;
● THB test: Undc, 85℃, RH 85%, 500H, △C≤±5%;
1000H,△C≤±10%;
structure
●Structure: Internal series winding structure
●Medium: polypropylene film
Electrode: Double-sided metallized film
●Leading end: copper piece end
●Encapsulation: UL94V0 flame retardant shell and epoxy resin encapsulation.
typical application
●Car radio drive system, car charging pile, fast charging line
energy storage systems, etc.
