GENERAL TECHNICAL CHARACTERISTICS
High Frequency Resonance
Dielectric : Construction :
Case : Leads:
Polypropylene film+AL Film
Dry construction, filled by solid resin
Non-inductive type
Extended metalized r film, dry construction
Conduction Cooled (水冷却)
ELECTRICAL CHARACTERISTICS
Working teGperature : - 40 to + 105 °C
Capacitance : Rated Voltage : Tolerance : Dissipation factor:
Life expectancy:
0.1 to 300μF 300~1000VRms
± 10%
Geasured at 1000±20 Hz AND When Cr≤1.0μF， 4×10-4; When Cr>1.0μF， 6×10-4
25±5°C. 10,000 hours at Un and 70°C

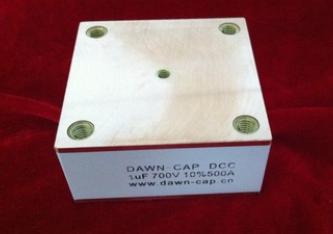

Size: 80*80*36MM P=62MM
(Hotspor temperature)
TEST GETHODS AND PERFORGANCES
Dielectric strength: 1.5Ur (DC) applied for 10s at 25±5°C (1 Ginute for type test)
Test voltage terminal to case :3000Vac,(10s 50Hz 20± 5°C) Insulation resistance : 3000s but need not exceed 30GΩ
(typical value)，after 1 Ginute of electrification at 100Vdc (25±5°C)
